Chemical Injection Pumps by CheckPoint Pumps & Systems

Series ATP

Electric/Solar Plunger

FLOW RATE: 0.0 - 60.0 USG/D (0.0 - 227.1 L/D)
PRESSURE: 0 - 5,000 PSIG (0 - 344.7 BARG)
ADVANTAGES: Economical electric pump solution capable of onshore and offshore duty with AC, DC, and solar service. Features expandability up to 4 independent injection heads.

Series SLA

Electric Plunger

FLOW RATE: 0.0 - 50.87 USG/H (0.0 - 192.56 L/H)
PRESSURE: 0 - 13,500 PSIG (0 - 931 BARG)
ADVANTAGES: Robust casing and a variable eccentric drive designed to withstand harsh conditions. Contains minimal moving parts to guarantee long-term reliability and superior uptime.

Series SLA LeakLess

Electric Plunger

FLOW RATE: 0.0 - 22.61 USG/H (0.0 - 85.59 L/H)
PRESSURE: 0 - 13,500 PSIG (0 - 931 BARG)
ADVANTAGES: Engineered to combine the advantages of both diaphragm and plunger pumps, featuring new patent pending technology which virtually eliminates seal wear and rapid bleeding design.

electric chemical injection pump with digital speed adjustment

Series S

Electric Solenoid

FLOW RATE: 0.0 - 1.25 USG/H (0.0 - 4.73 L/H)
PRESSURE: 0 - 250 PSIG (0 - 17.24 BARG)
ADVANTAGES: Digital speed adjustment provides repeatable precisions, and metering accuracy is achieved via highly efficient check valves. NEMA 4X housing with splashguard allows for outdoor installations.

portable solar/electric chemical injection plunger pump

Series FXS

Electric/Solar Plunger

FLOW RATE: 0.34 - 552.3 USG/H (1.29 - 1920 L/H)
PRESSURE: 0 - 12,000 PSIG (0 - 827.37 BARG)
ADVANTAGES: Designed to provide a quality, low-maintenance, environmentally friendly chemical injection solution. Quick installation and maintenance, prewired with MC4 quick connectors.

Series FXA

Electric Plunger

FLOW RATE: 0.01 - 35.92 USG/H (0.037 - 136 L/H)
PRESSURE: 0 - 15,000 PSIG (0 - 1034 BARG)
ADVANTAGES: Modular, scalable electric pump with a highly efficient drive mechanism. Accommodates a variety of motors and a full range of plunger diameters from 1/8" to 1-1/2". Quick maintenance and low downtime.

Series HDA

Electric Diaphragm

FLOW RATE: 0.11 - 2.88 USG/H (0.42 - 10.90 L/H)
PRESSURE: 0 - 1,000 PSIG (0 - 69 BARG)
ADVANTAGES: Features ceramic hydraulic plunger and bushing, guaranteeing long life, low wear, and repeatable, consistent injection. Includes rupture detection system, internal relief valve, and more.

electric pump with hydraulically actuated balanced diaphragms

Series MD

Electric Diaphragm

FLOW RATE: 3 - 2,190 USG/H (11.36 - 8,290.1 L/H)
PRESSURE: 0 - 2,500 PSIG (0 - 172.4 BARG)
ADVANTAGES: Featuring hydraulically actuated balanced diaphragms, each containing an internal suction and discharge check. Each diaphragm is sequentially actuated by a cam shaft or wobble plate design.

electric metering pump with single nonmetallic diaphragm

Series MDZ

Electric Diaphragm

FLOW RATE: 0.05 - 60 USG/H (0.19 - 227.3 L/H)
PRESSURE: 0 - 1,500 PSIG (0 - 103 BARG)
ADVANTAGES: Boasts a unique drive system which efficiently converts the rotational energy of the motor to axial energy and pressurizes hydraulic oil, actuating a single nonmetallic diaphragm. Enables incredibly low failure rates.

affordable pneumatic pump for shale applications

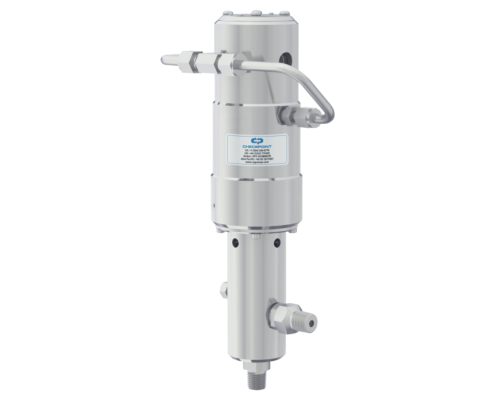

Series GX15

Pneumatic Plunger

FLOW RATE: 0.04 - 1.46 USG/H (0.15 - 5.53 L/H)
PRESSURE: 0 - 3,500 PSIG (0 - 241.32 BARG)
ADVANTAGES: Created with shale applications in mind. Low volume and pressure delivery requirements are achieved through its pneumatic design and construction, producing a balance of quality and cost of ownership.

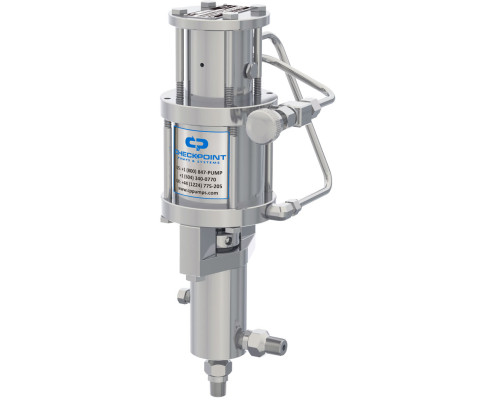

Series 1250

Pneumatic Plunger

FLOW RATE: 0.002 - 8.0 USG/H (0.007 - 30.28 L/H)
PRESSURE: 0 - 12,000 PSIG (0 - 827.4 BARG)
ADVANTAGES: Durable, high-quality materials enable accurate and repeatable injections, quick maintenance and low downtime with a high return on investment. Able to run of pressurized gas or liquid without stalling.

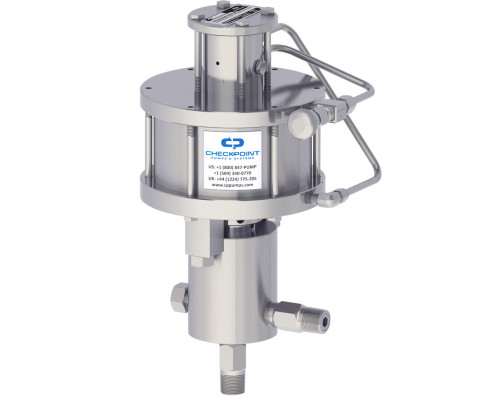

Series 1500

Pneumatic Plunger

FLOW RATE: 0.04 - 36.25 USG/H (0.16 - 137.21 L/H)
PRESSURE: 0 - 15,000 PSIG (0 - 1,034 BARG)
ADVANTAGES: Pneumatic motor, composed entirely of 316 SS, is isolated from the wet end, improving functionality and reliability. Double-acting design eliminates a return spring, increasing repeatability and reliability.

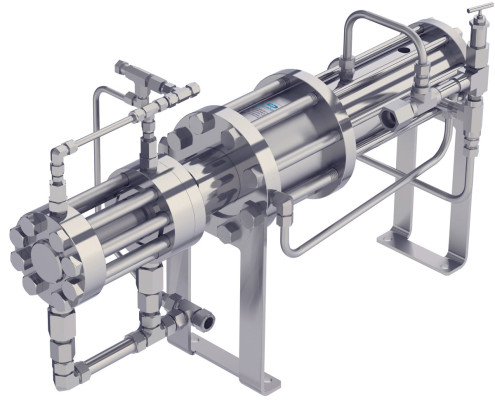

Series 5400

Pneumatic Plunger

FLOW RATE: 0.83 - 1,170 USG/H (3.14 - 4,429 L/H)
PRESSURE: 0 - 15,000 PSIG (0 - 1034 BARG)
ADVANTAGES: Designed for vital, mission-critical chemicals and corrosive production compounds. Proprietary, high-quality seal materials enable unparalleled chemical resistance, wide range of wetted component materials available.

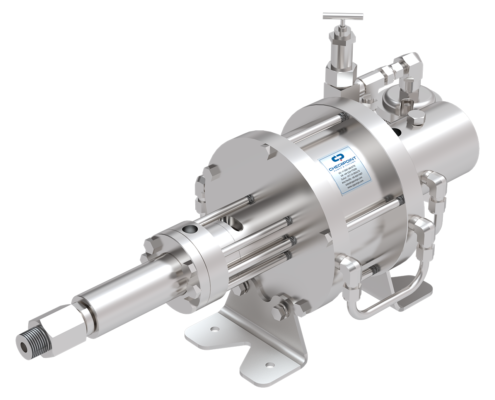

Series 6200

Pneumatic Plunger

FLOW RATE: 1.8 - 58.0 USG/H (6.8 - 219.5 L/H)
PRESSURE: 0 - 10,000 PSIG (0 - 689 BARG)
ADVANTAGES: Unique head design featuring a check valve integrated integrated into the plunger tip, which moves liquid on both sides of the stroke, increasing flow output and providing continuous injection.

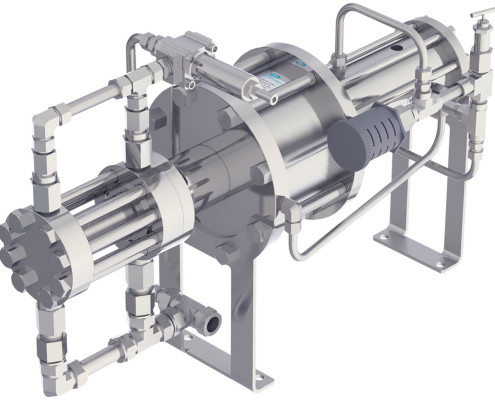

Series 8400

Pneumatic Plunger

FLOW RATE: 0.83 - 585 USG/H (3.14 - 2,214.47 L/H)
PRESSURE: 0 - 20,000 PSIG (0 - 1,379 BARG)
ADVANTAGES: Developed for continuous, accurate, and reliable injection in harsh offshore and remote environments by utilizing an isolated chemical head, switching valve, diverse materials of construction, and more.
