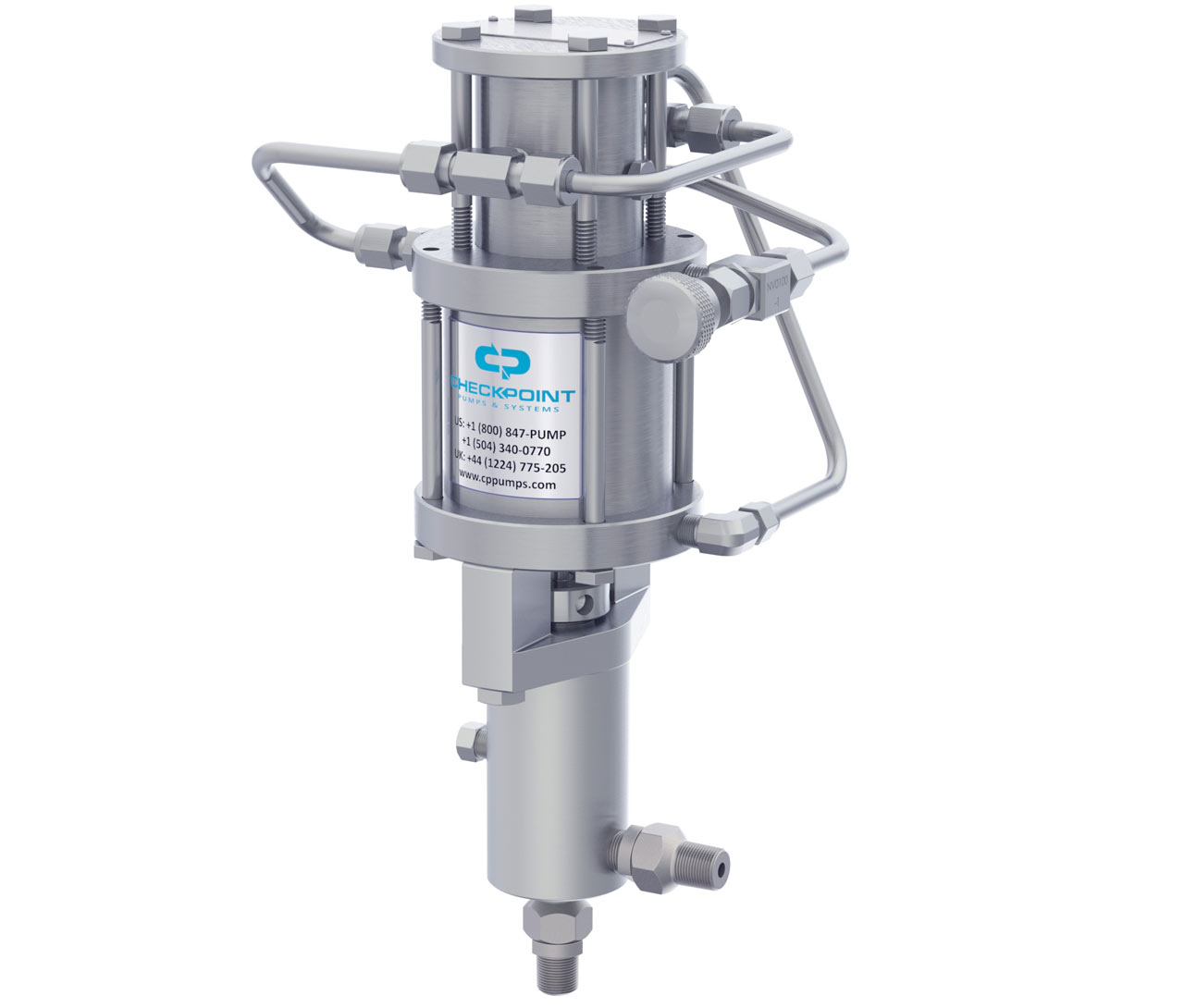

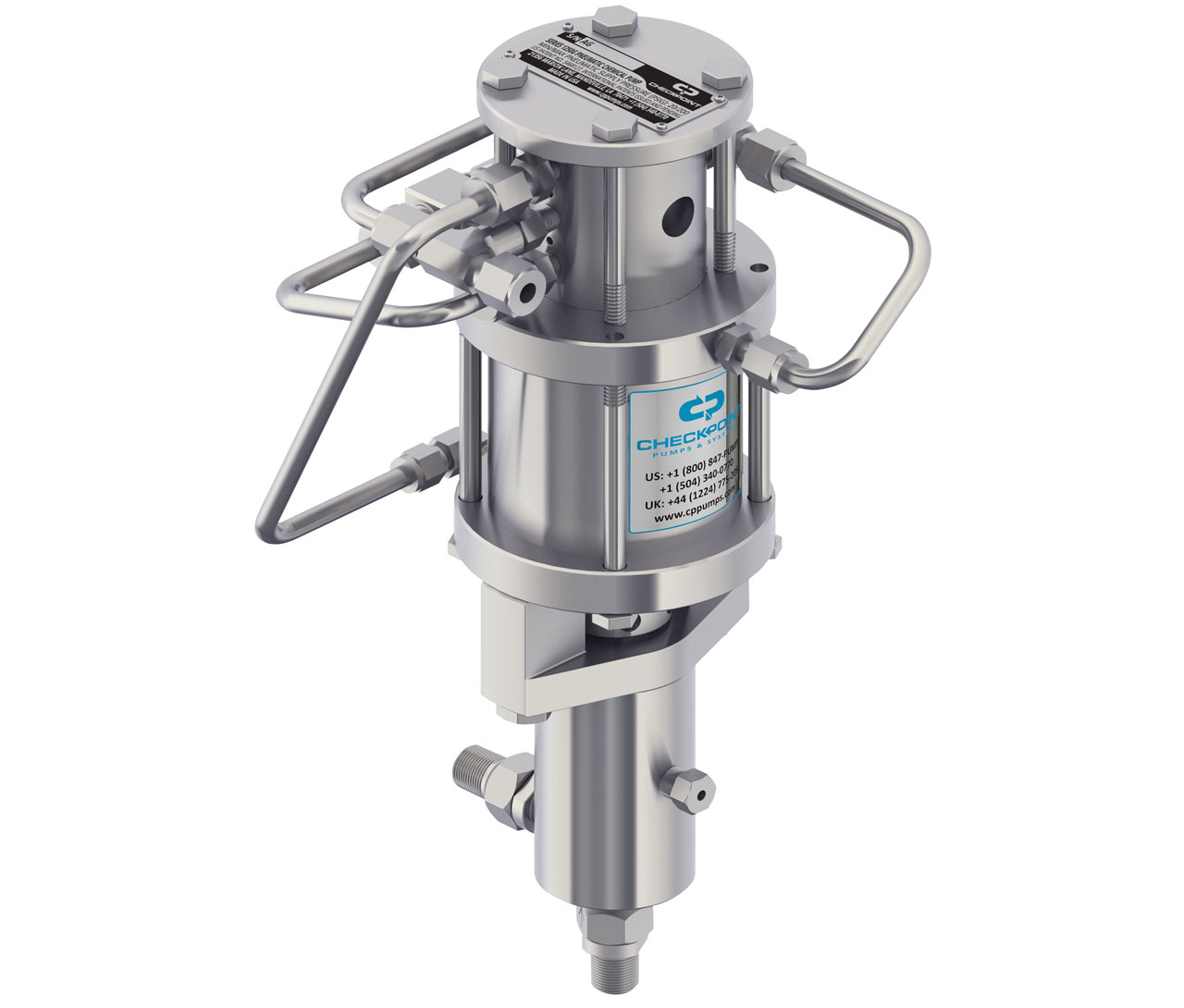

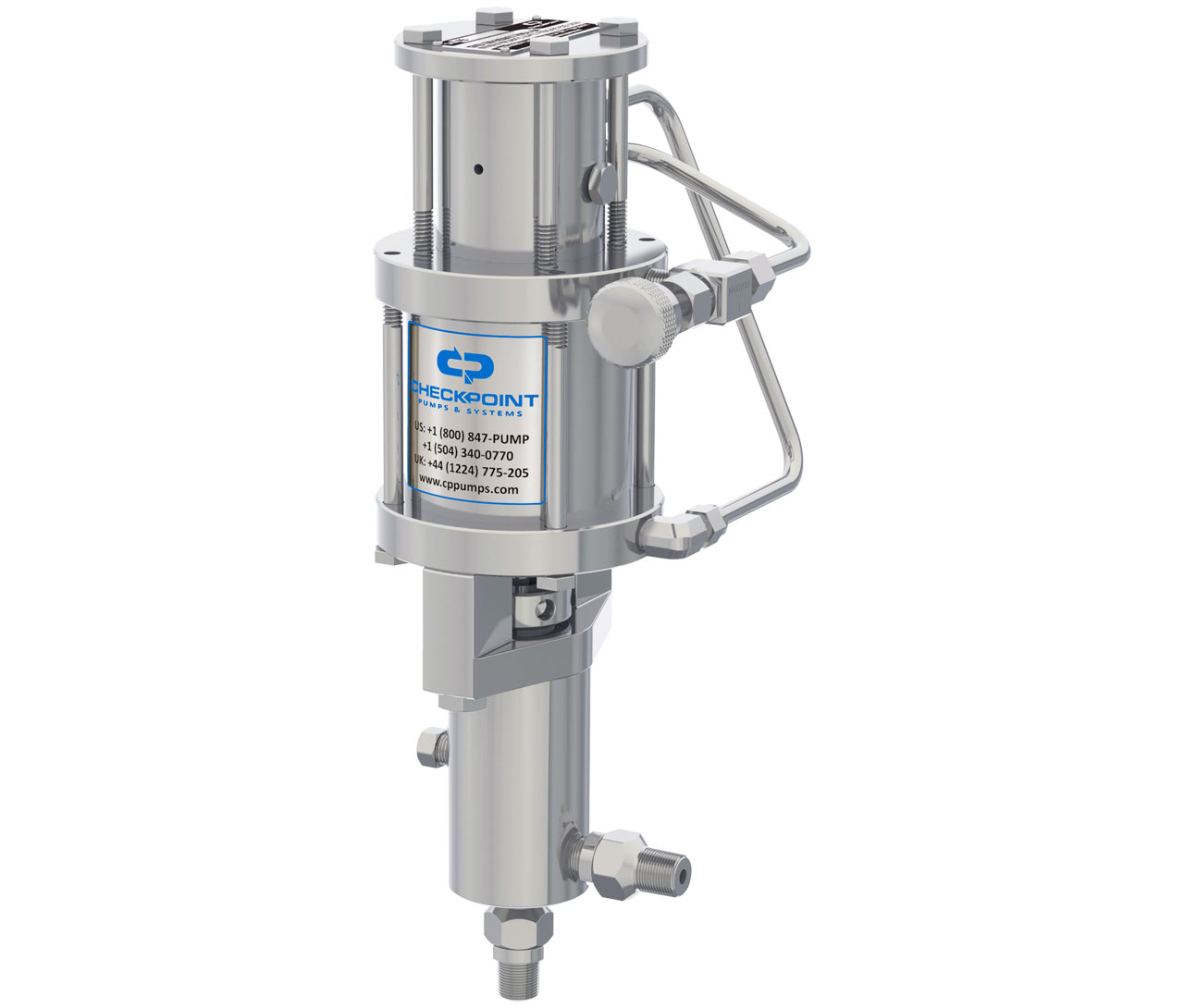

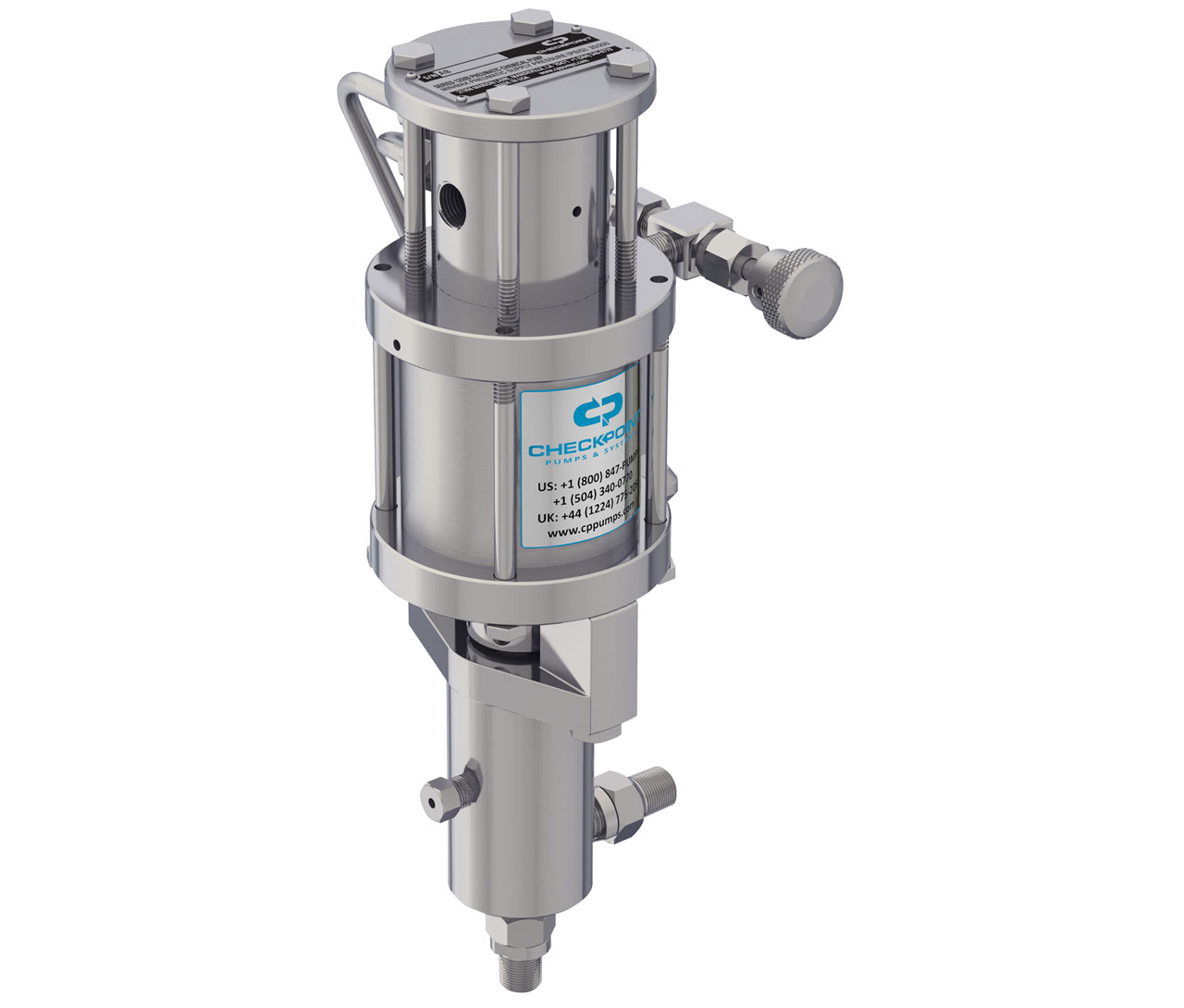

Series 1250
Pneumatic Plunger Pump
CheckPoint’s Series 1250 pump delivers up to 8 USG/H (30.38 L/H) and can reliably inject into pressures up to 12,000 PSIG (827.4 BARG).

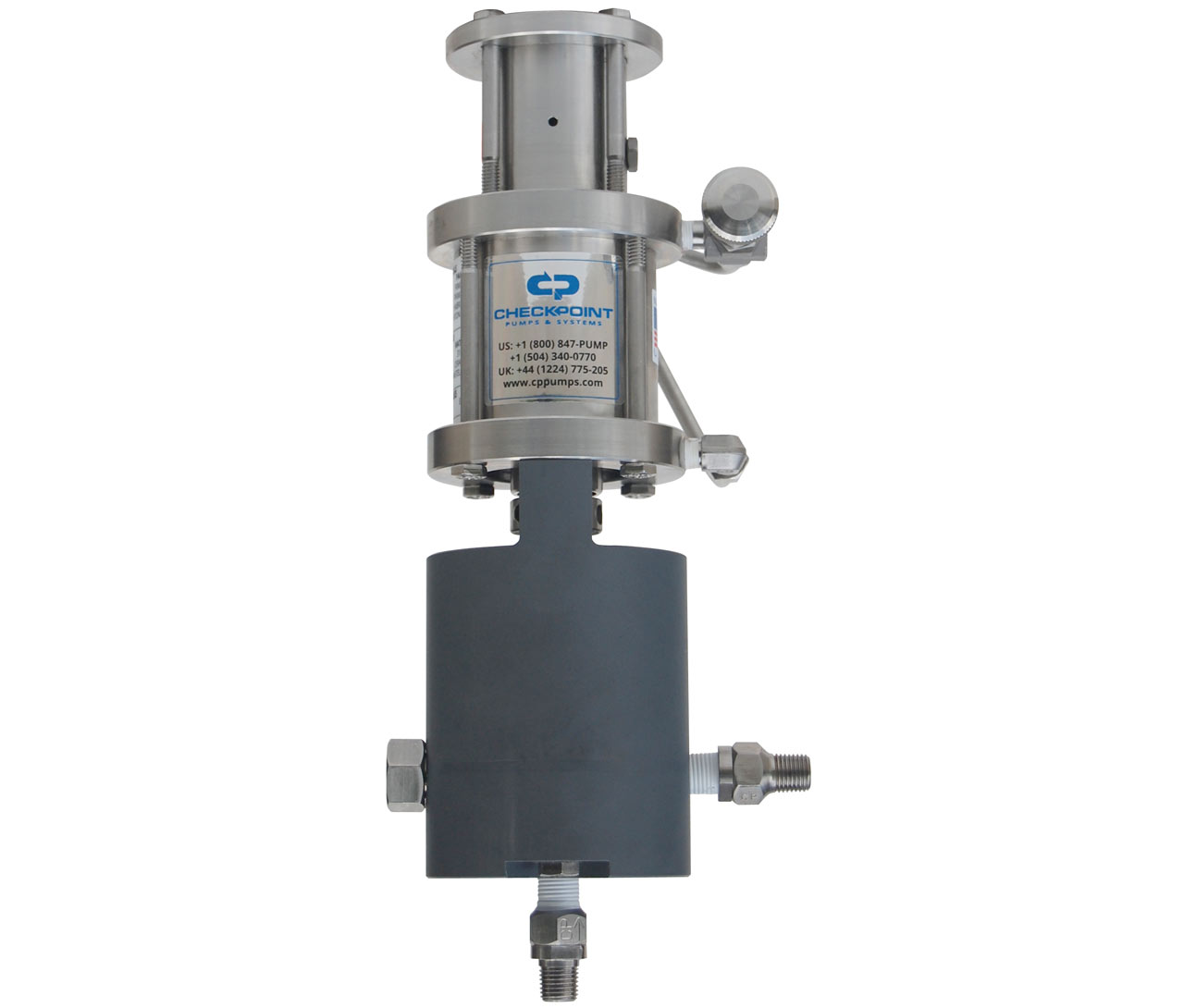

CheckPoint’s modularly designed chemical heads and range of plunger sizes meet a wide variety of injection applications. Our pumps maintain unparalleled chemical resistance due to the essential integration of high-quality, proprietary seal materials. In order to meet a wide variety of chemical compatibility needs, wetted parts are available in an array of materials, such as 316 SS, Hastelloy C-276, Duplex 2205, Super Duplex 2507, PVC, ceramic and titanium, and seals are available in Viton, HNBR, FKM, and FFKM. All construction materials are compatible with sour gas according to NACE MRO175 and ISO 15156.
Performance Data
1/8″ Plunger (High Pressure)
1/4″ Plunger (High Pressure)
Operating Manual
Sales Brochure
Order Guide
Rentals
CheckPoint’s positive displacement, reciprocating chemical injection pumps are specifically designed for, and extensively proven in, demanding oil and gas production applications worldwide. Our pumps are utilized in various industries, such as pulp, water treatment, fertilizer dosing, paper, and fluid processing applications, where precise delivery is operationally paramount. The pneumatic motor, composed entirely 316L SS, remains isolated from the wet end and is dependably able to run on pressurized gas or liquid without stalling. CheckPoint’s double-acting design eliminates a return spring, which greatly increases repeatability and reliability over time.
Performance Data
| Series 1250 | |
|---|---|
| Cycle Rate / Minute 1 | 0.5 – 105 2 |
| Supply Pressure | 20 – 200 PSIG (1.4 – 13.8 BARG) |
| Piston Diameter | 2.50 in (64 mm) |
| Stroke Length3 | 0.94 in (24 mm) |
| Weight | 11 lbs (5 kg) |
| Height | 12 in (305 mm) |
| Turndown Ratio (max / min cycle rate) | 210 |
1. Series 1250 “Short Stroke” models cycle rate / minute ranges from 1 – 210
2. Series 1250 can cycle faster than the max. listed rate; not recommended for long-term use. Contact CheckPoint before operating above 105 cycles/minute.
3. “Short Stroke” models have a stroke length of 0.5 in (13 mm)
