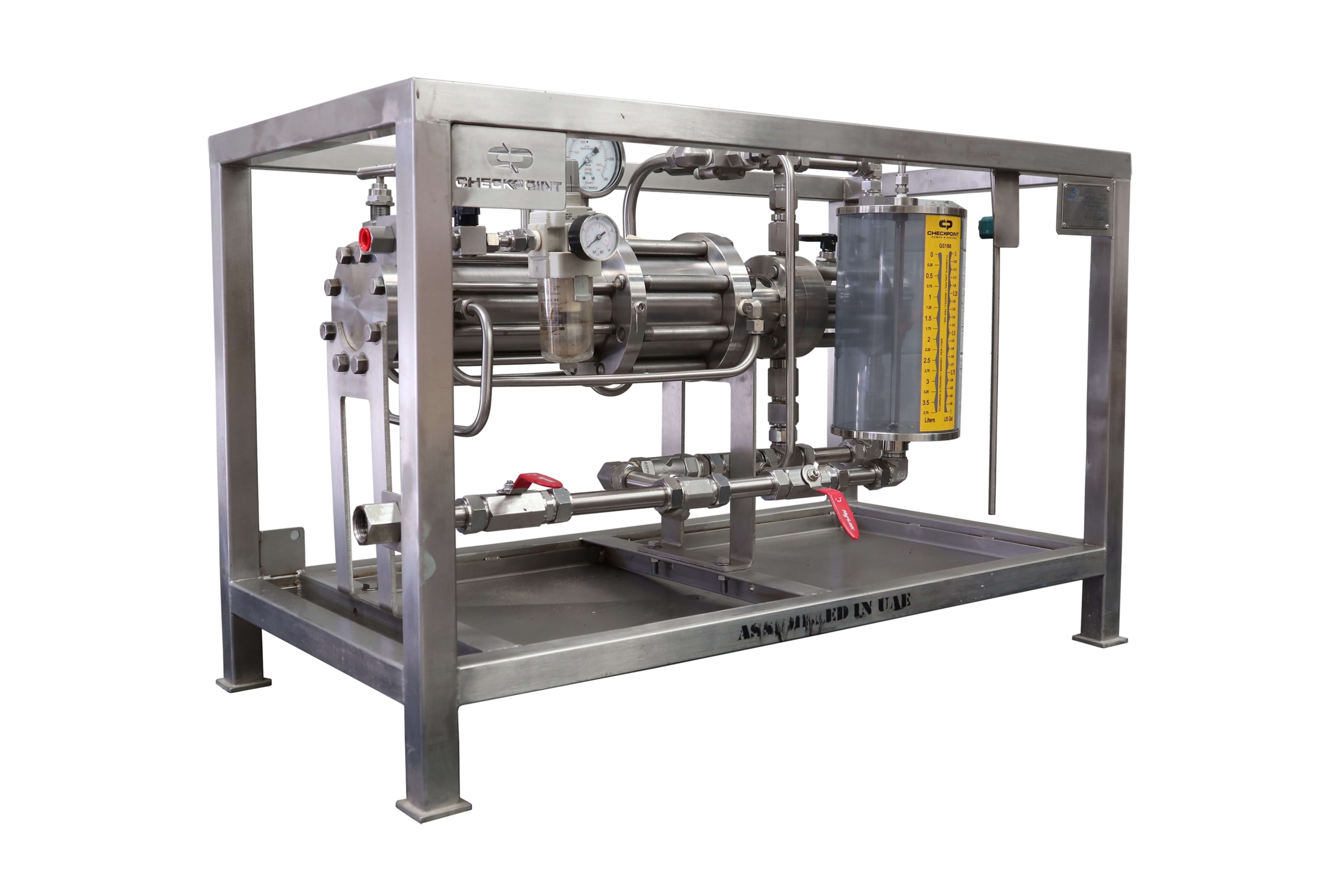

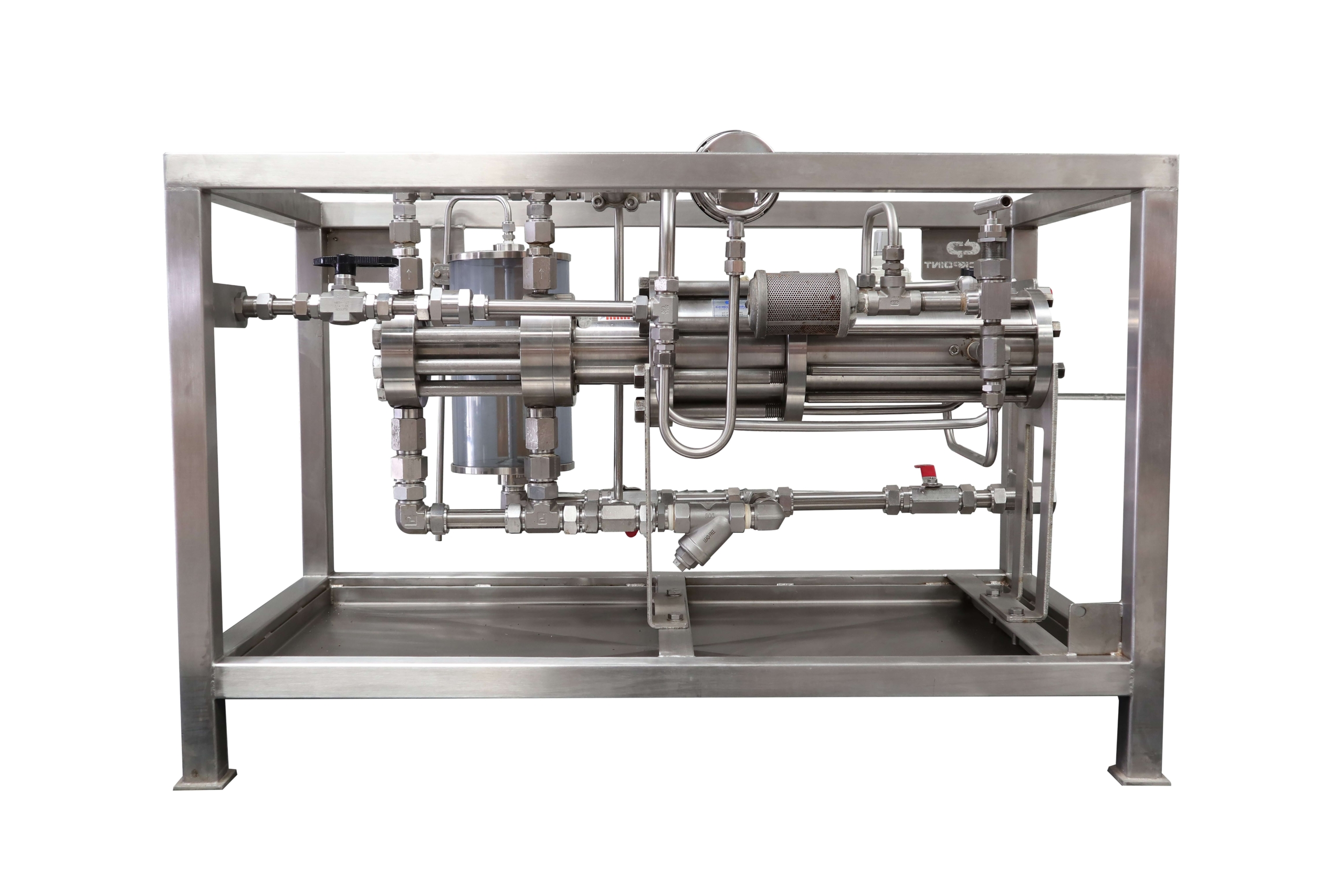

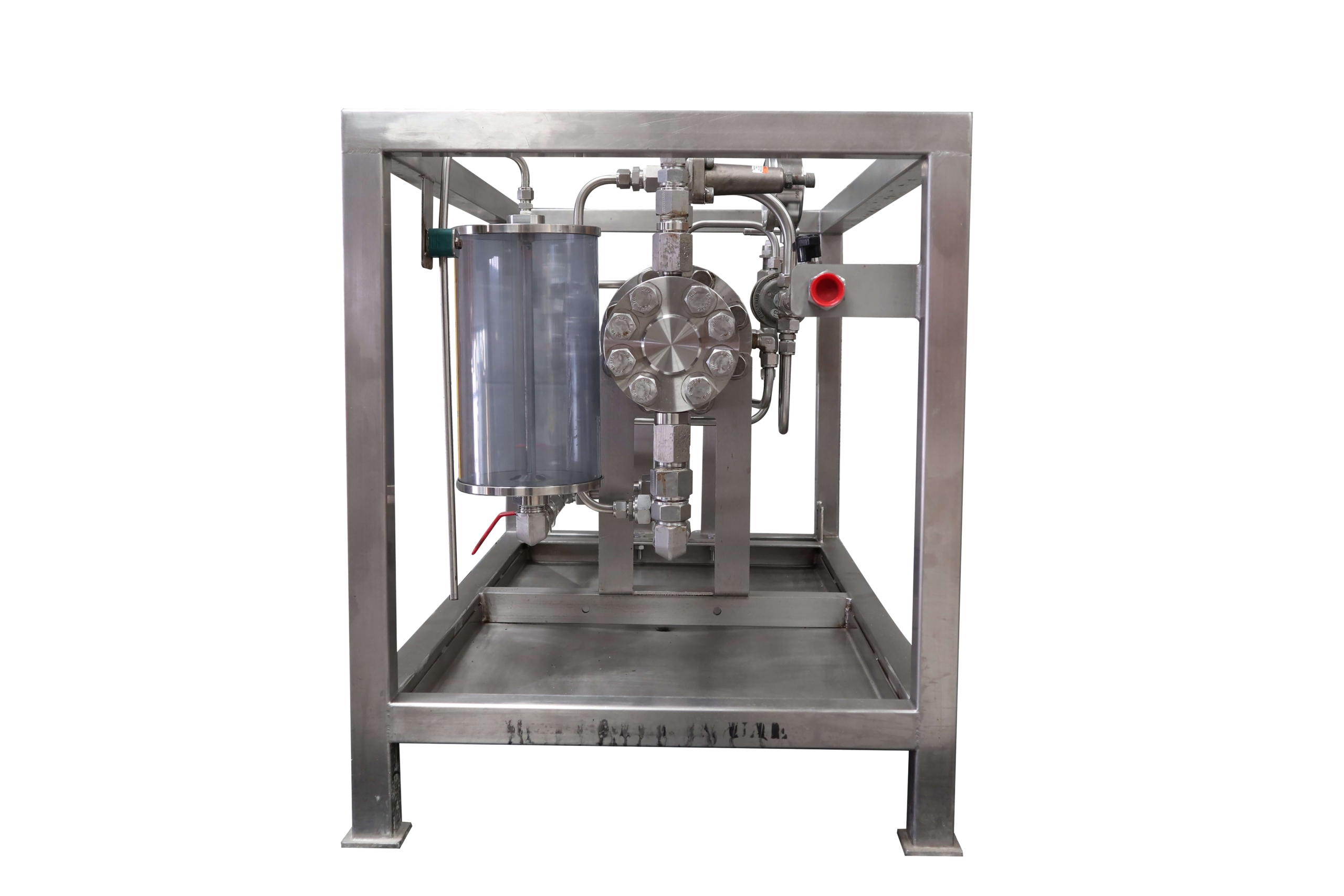

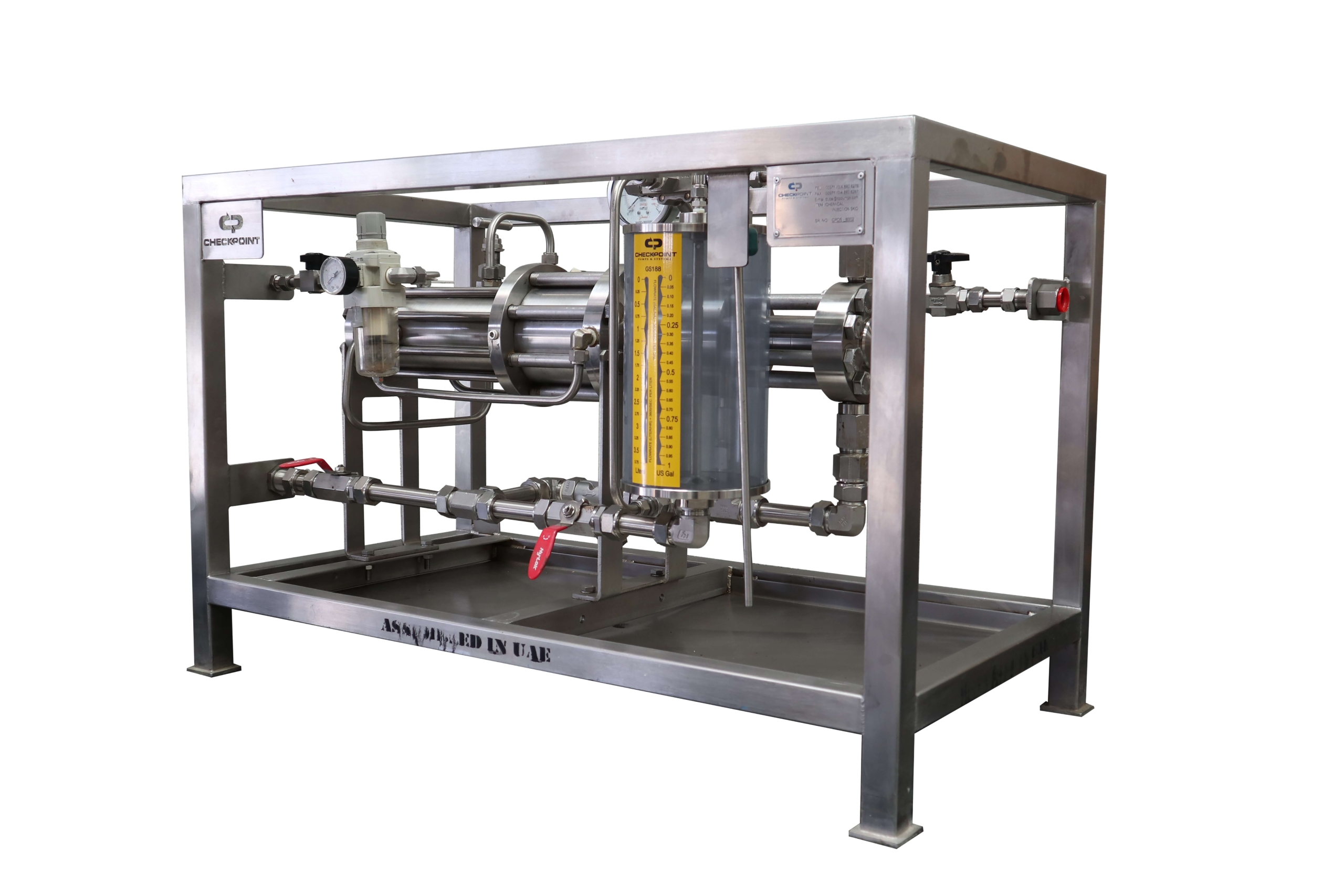

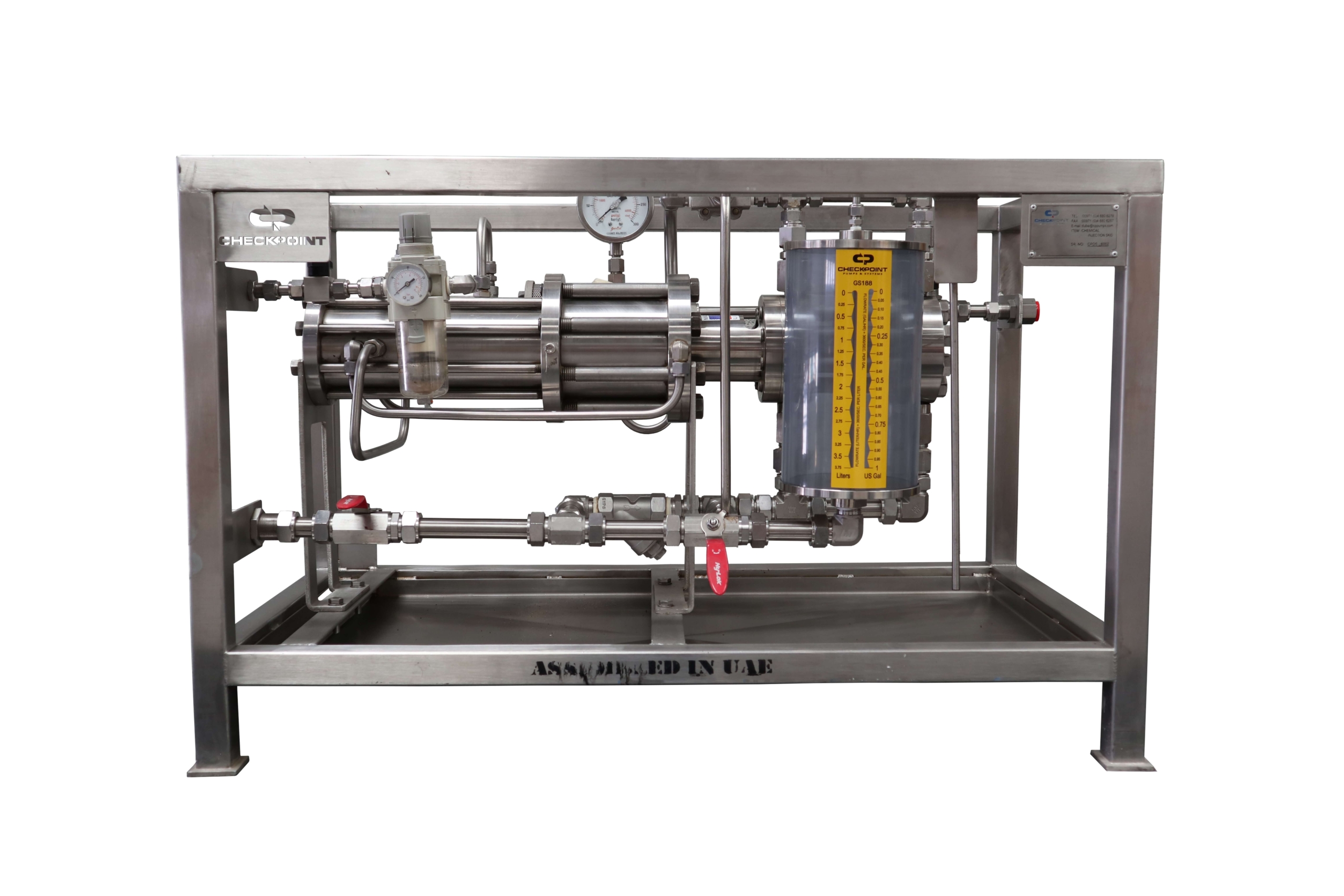

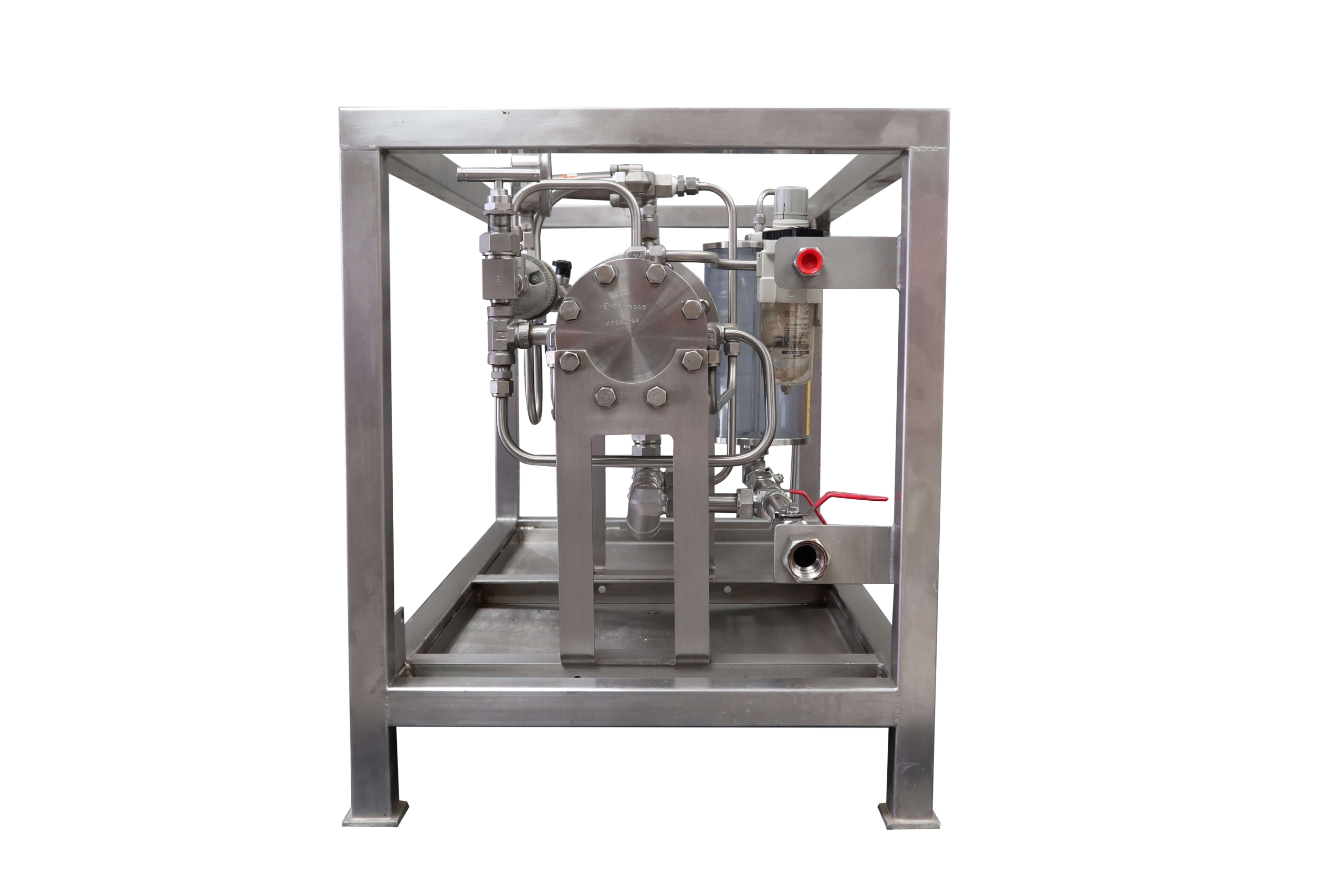

Series 5400 Rental Package
Single Pump Package
CheckPoint’s Series 5400 pump delivers up to 1,170 USG/H (4,429 L/H) and can reliably inject pressures up to 15,000 PSIG (1,034 BARG).
From the isolated chemical head to the switching valve to the materials of construction, CheckPoint’s Series 5400 pump was developed for continuous, accurate, and reliable injection in harsh offshore and remote locations. No compromises were made. We designed this pump for vital, mission-critical chemicals like methanol, drag reducer, and other expensive, hazardous, and corrosive production compounds.
Available from stock for purchase or rent – custom-built or standard.
Rental Brochure
In order to meet a wide variety of chemical compatibility needs, wetted parts are available in an array of materials, such as 316L SS, Hastelloy C-276, Duplex 2505, Super Duplex 2507, ceramic and titanium, and seals are available in Viton, HNBR, FKM, and FFKM. All construction materials are compatible with sour gas according to NACE MR0175 and ISO 15156. CheckPoint pumps do not contain any springs and have fewer moving parts than any other pneumatic pump in the industry, resulting in minimal wear, effective maintenance, and ultimately an increased life span.

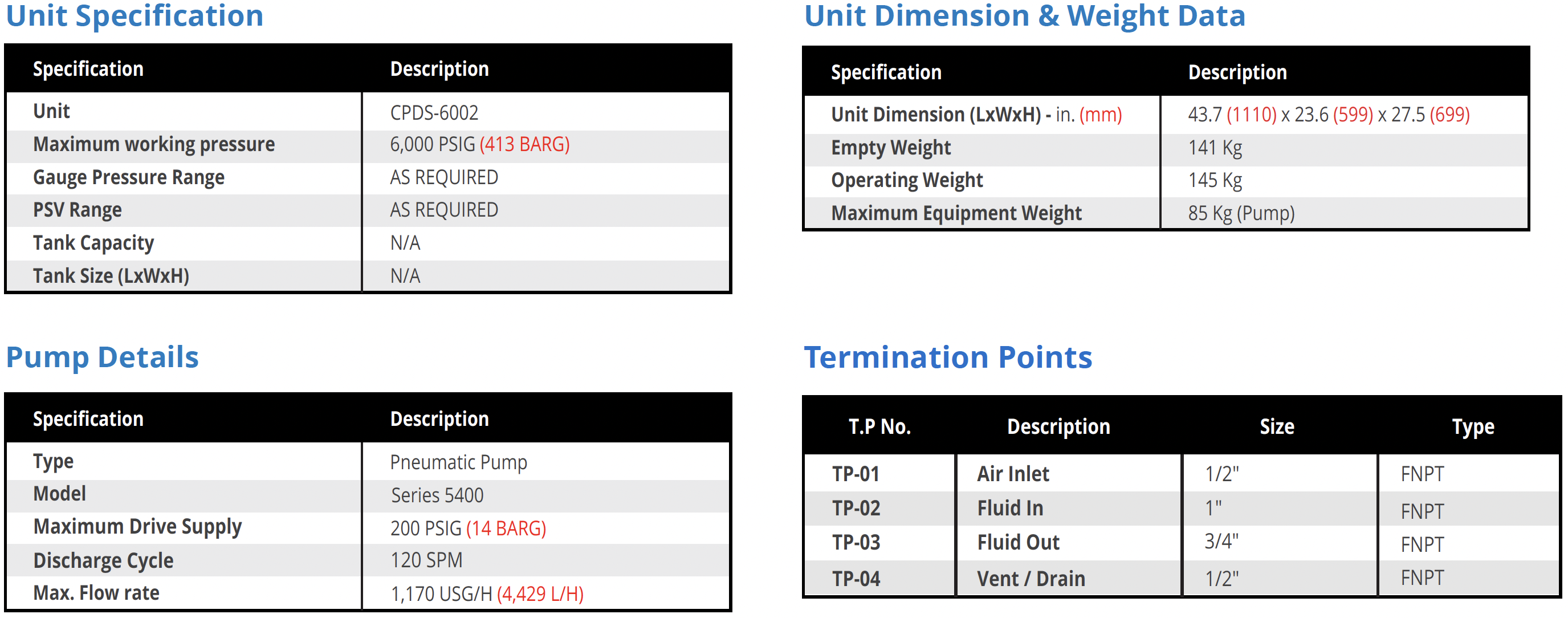

Performance Data
