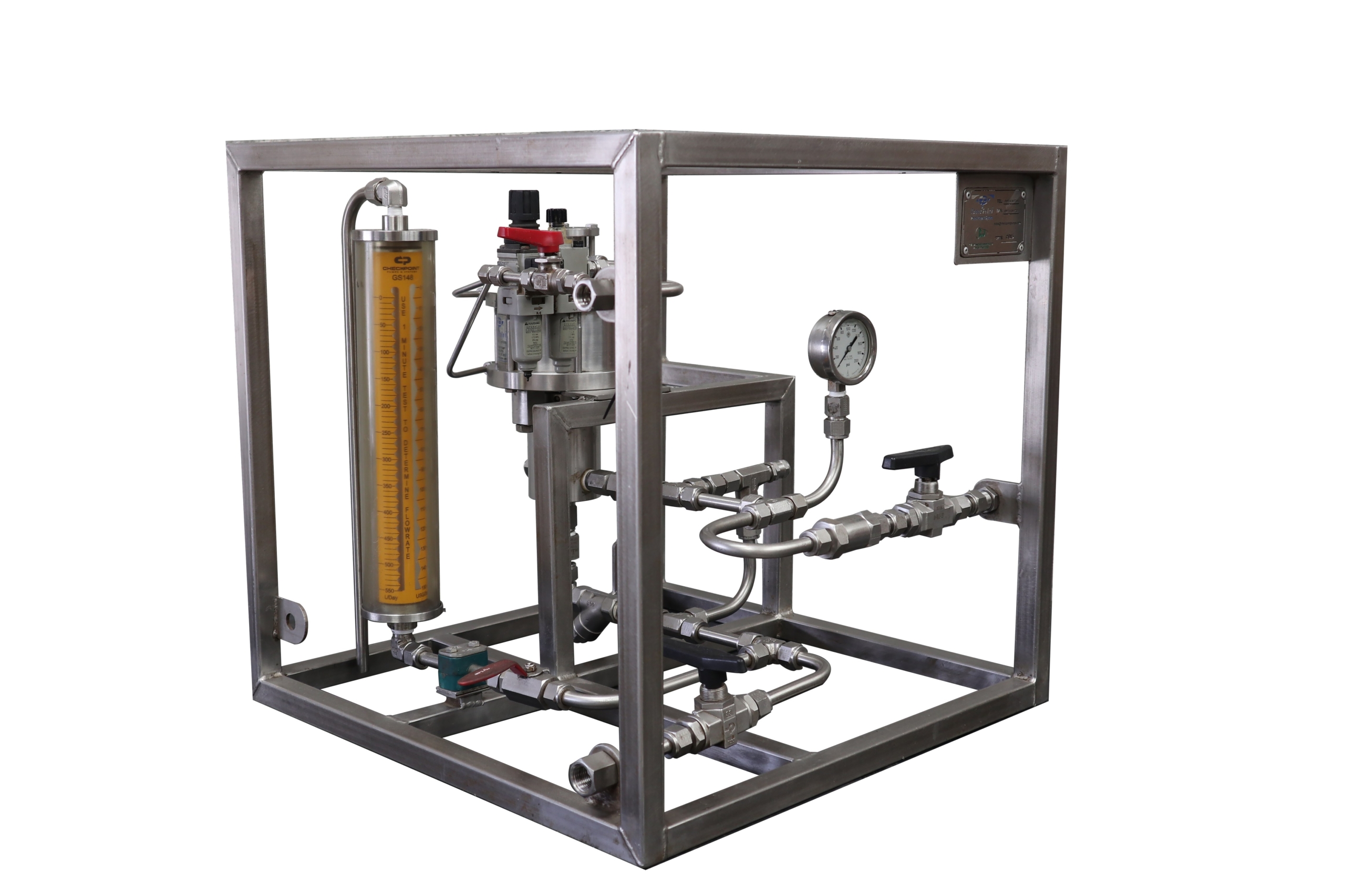

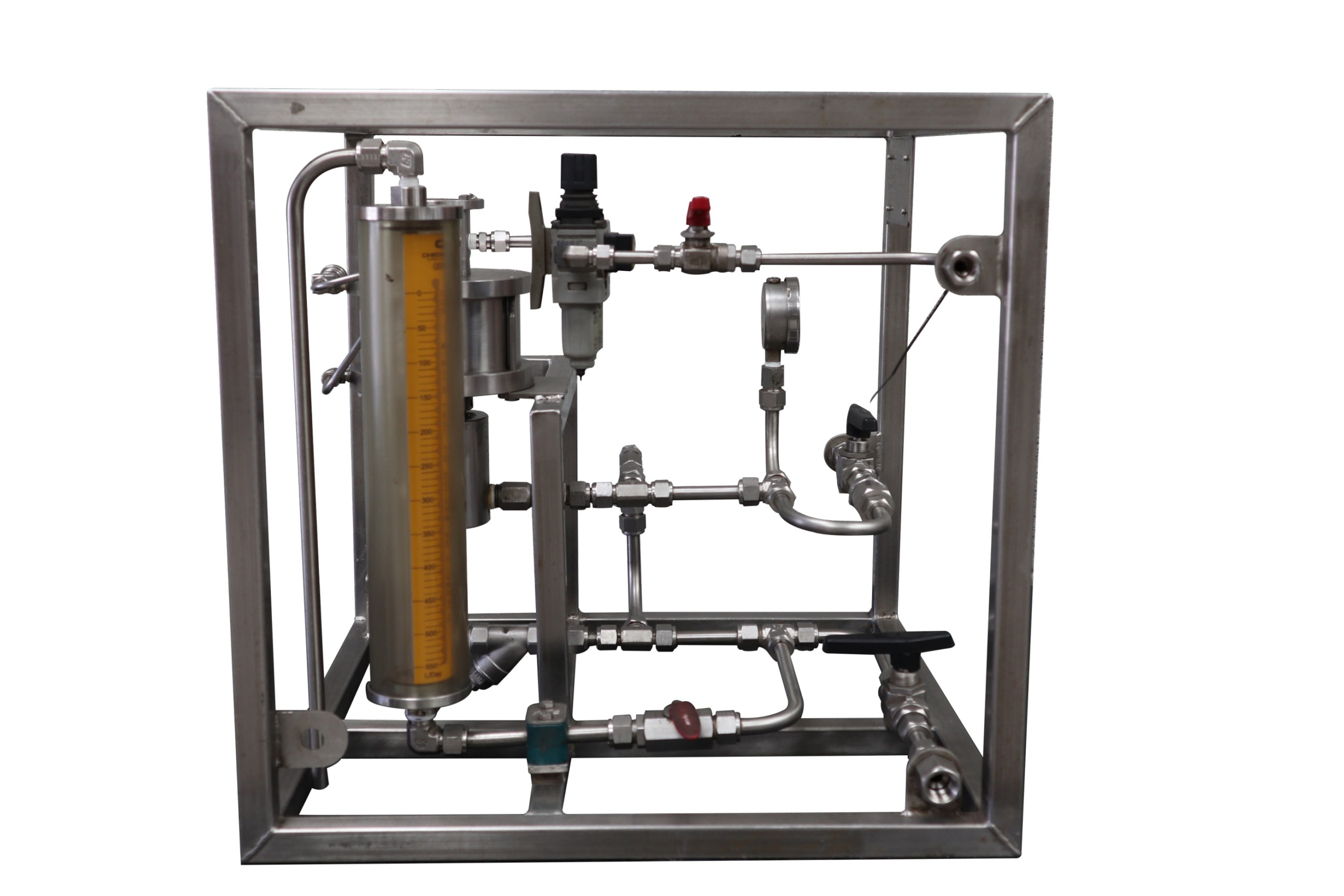

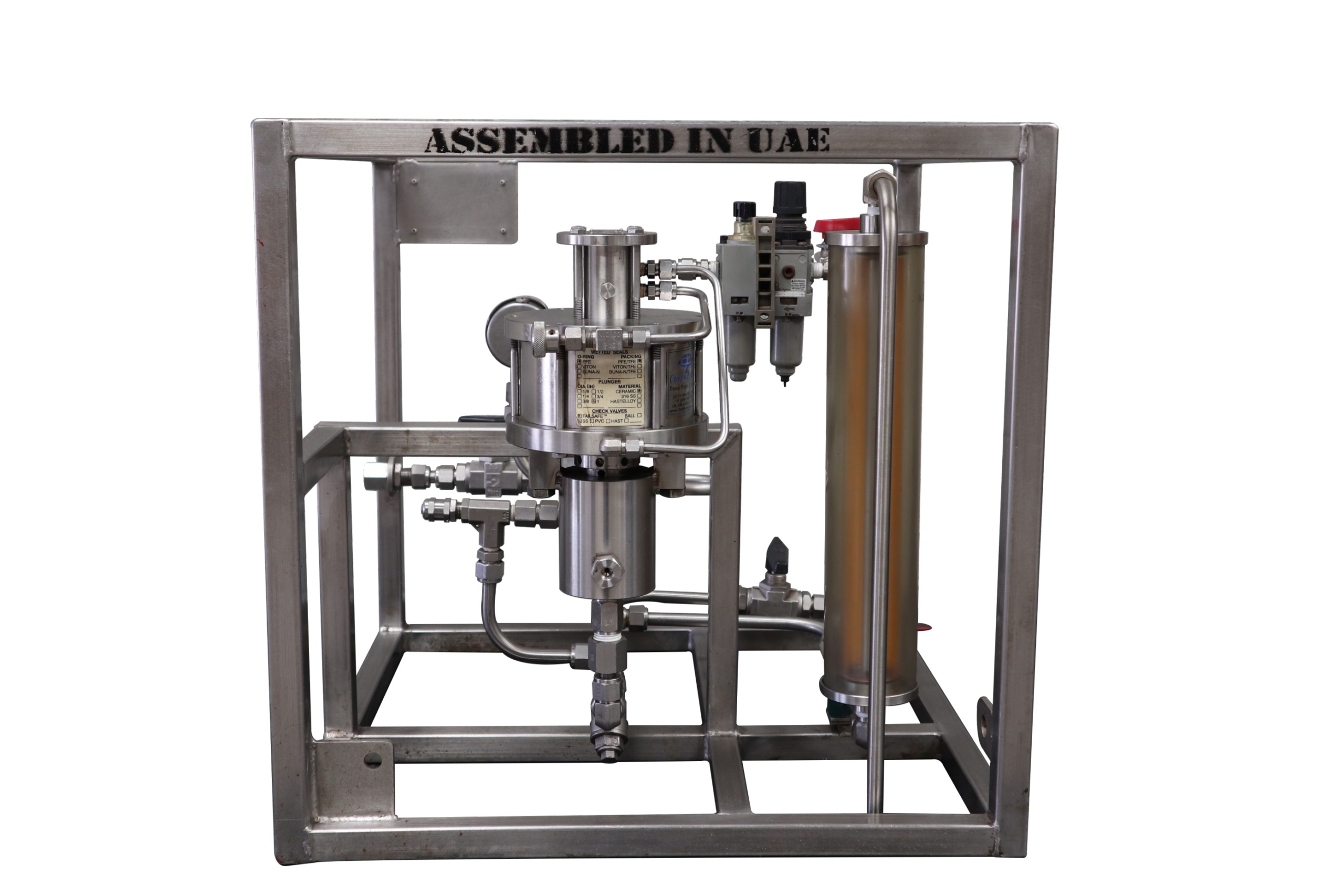

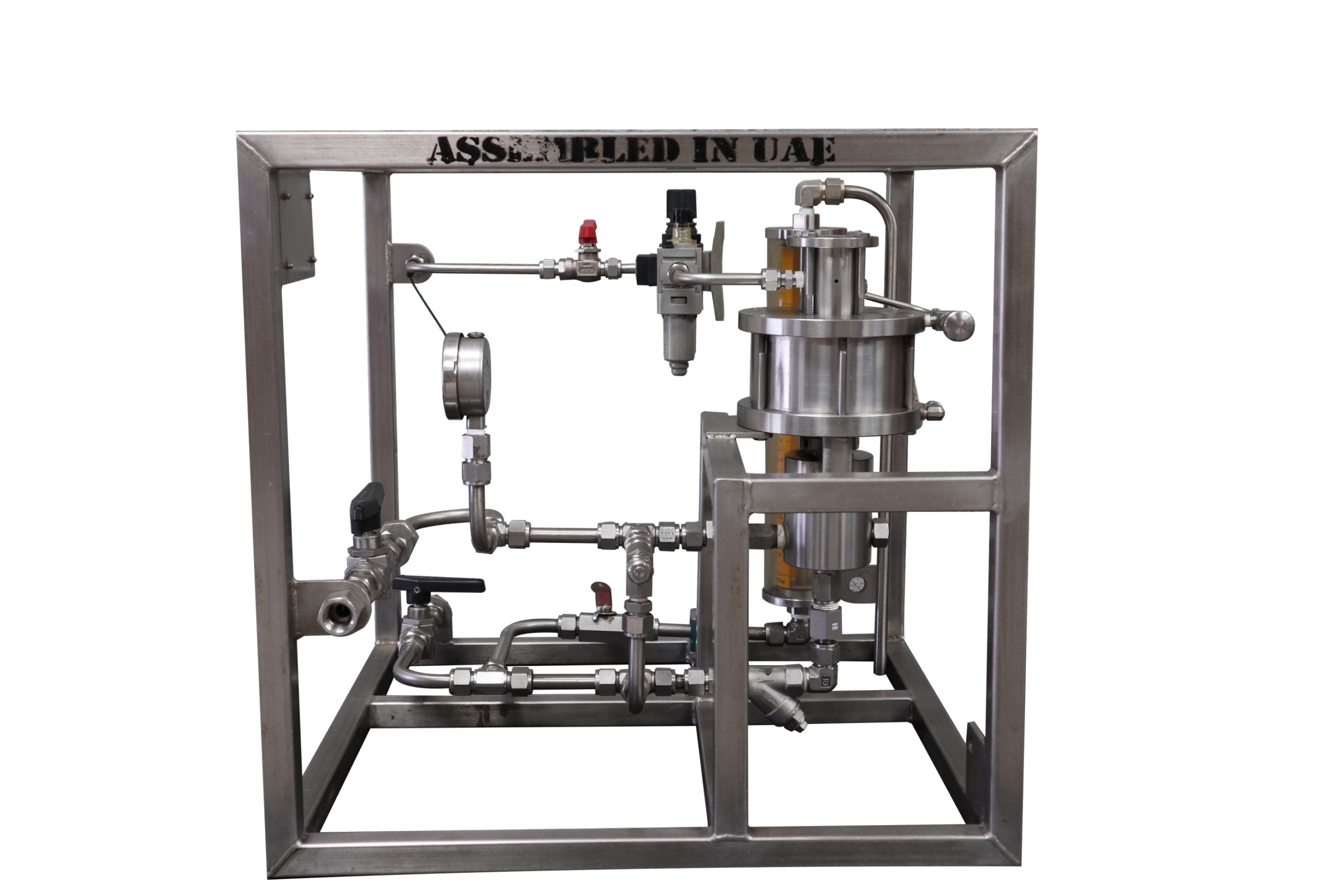

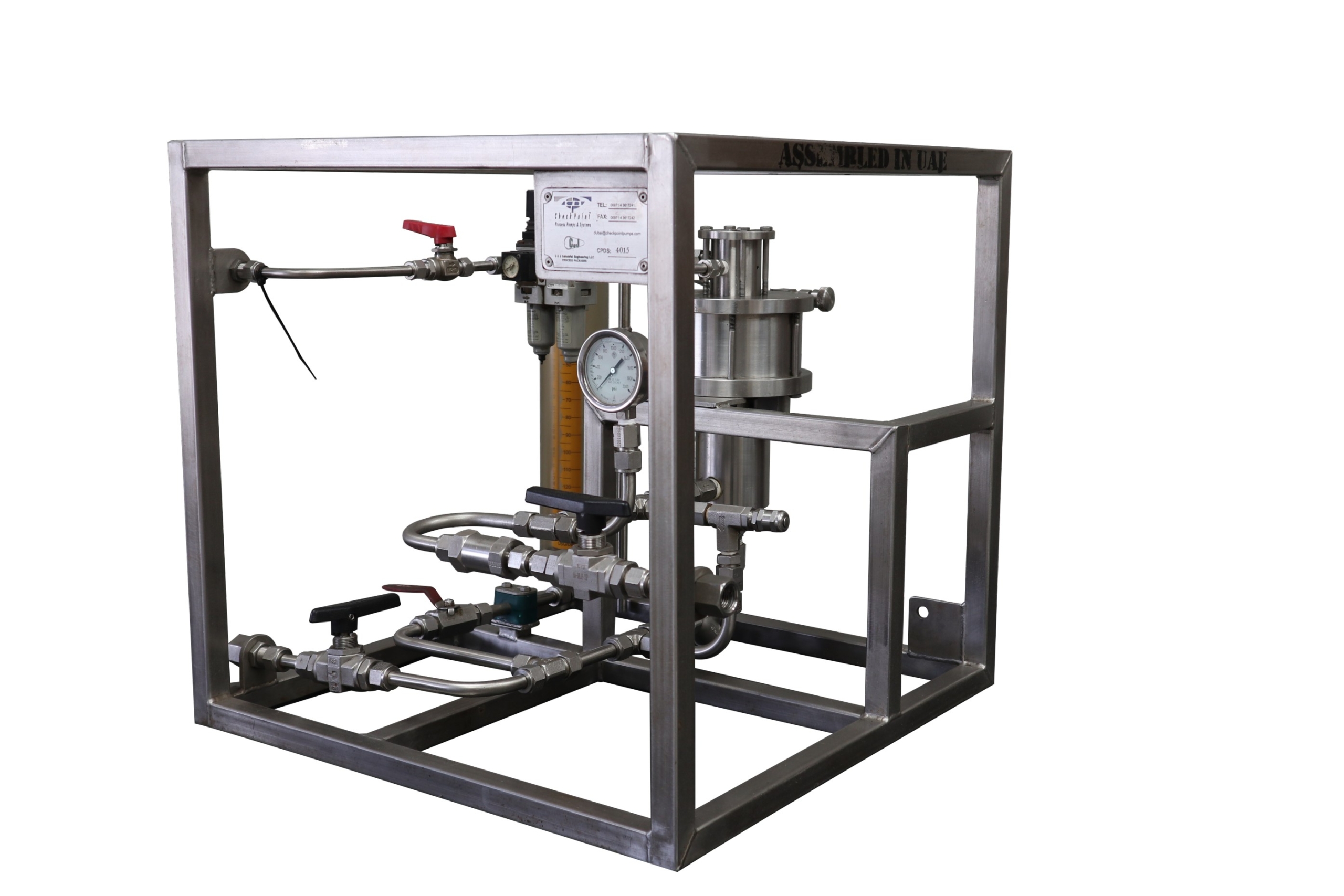

Series 1500 Rental Package

Single Pump Package

CheckPoint’s Series 1500 pump delivers up to 36.25 USG/H (137.21 L/H) and can reliably inject pressures up to 15,000 PSIG (1,034.0 BARG).

The Series 1500 pneumatic pump features modularly designed chemical heads and a range of plunger sizes to meet a wide variety of injection applications. CheckPoint pumps are specifically designed for demanding oil and gas production applications worldwide.

Available from stock for purchase or rent – custom-built or standard.

Sales Brochure

Series 1500 Sales Brochure

Rental Brochure

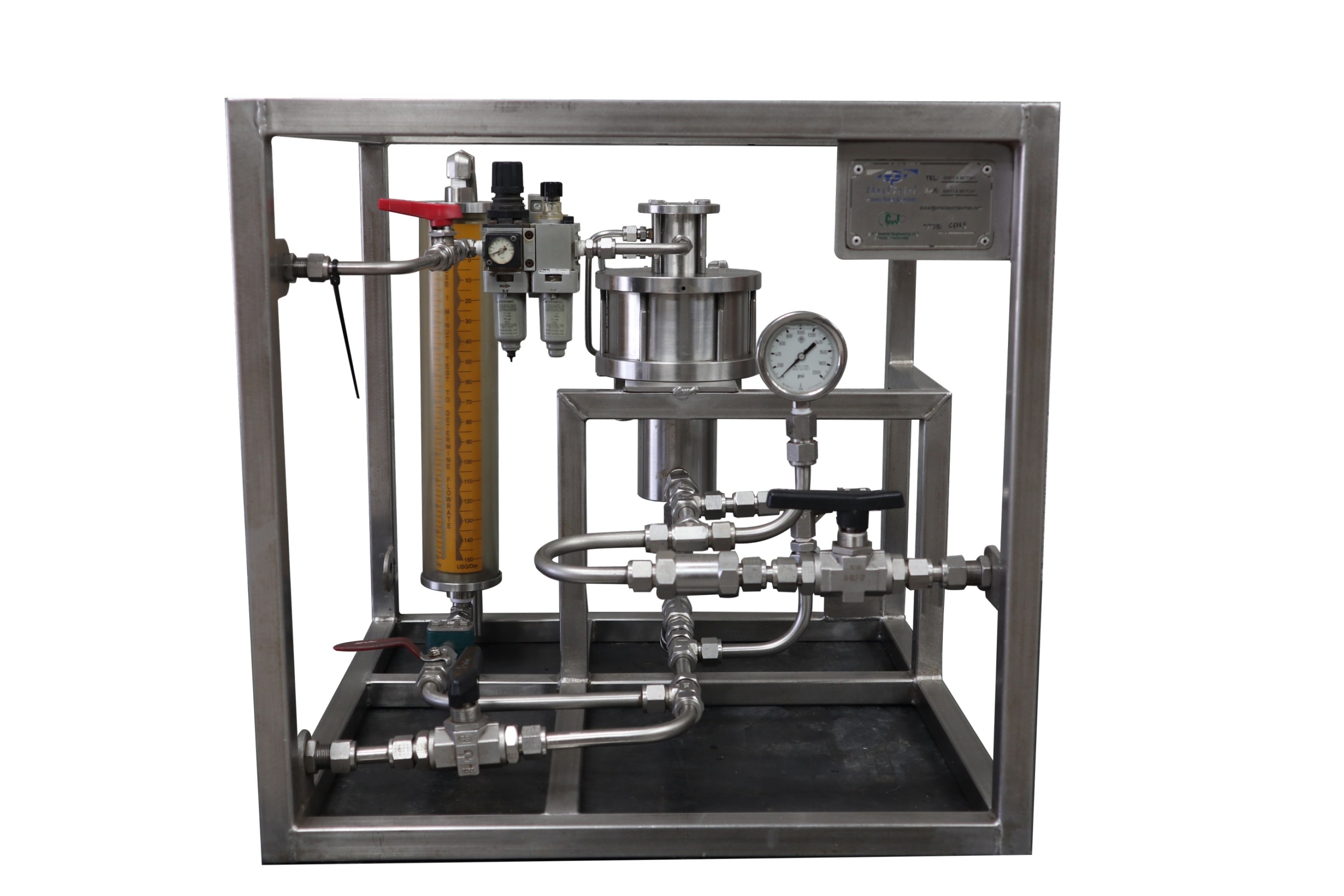

CPDS-4015 Rental Brochure

Systems Pumps

SUBMIT PUMP RENTAL FORM

In order to meet a wide variety of chemical compatibility needs, wetted parts are available in an array of materials, such as 316L SS, Hastelloy C-276, Duplex 2505, Super Duplex 2507, ceramic and titanium, and seals are available in Viton, HNBR, FKM, and FFKM. All construction materials are compatible with sour gas according to NACE MR0175 and ISO 15156. CheckPoint pumps do not contain any springs and have fewer moving parts than any other pneumatic pump in the industry, resulting in minimal wear, effective maintenance, and ultimately an increased life span.

Performance Data

affordable pneumatic pump for shale applications — Series GX15
Pneumatic Plunger

FLOW RATE: 0.04 - 1.46 USG/H (0.15 - 5.53 L/H)
PRESSURE: 0 - 3,500 PSIG (0 - 241.32 BARG)
ADVANTAGES: Created with shale applications in mind. Low volume and pressure delivery requirements are achieved through its pneumatic design and construction, producing a balance of quality and cost of ownership.

CheckPoint 1250 Pneumatic Pump — Series 1250
Pneumatic Plunger

FLOW RATE: 0.002 - 8.0 USG/H (0.007 - 30.28 L/H)
PRESSURE: 0 - 12,000 PSIG (0 - 827.4 BARG)
ADVANTAGES: Durable, high-quality materials enable accurate and repeatable injections, quick maintenance and low downtime with a high return on investment. Able to run of pressurized gas or liquid without stalling.

1500 Series Pneumatic Pump — Series 1500
Pneumatic Plunger

FLOW RATE: 0.04 - 36.25 USG/H (0.16 - 137.21 L/H)
PRESSURE: 0 - 15,000 PSIG (0 - 1,034 BARG)
ADVANTAGES: Pneumatic motor, composed entirely of 316 SS, is isolated from the wet end, improving functionality and reliability. Double-acting design eliminates a return spring, increasing repeatability and reliability.

5400 Series Pneumatic Pump — Series 5400
Pneumatic Plunger

FLOW RATE: 0.83 - 1,170 USG/H (3.14 - 4,429 L/H)
PRESSURE: 0 - 15,000 PSIG (0 - 1034 BARG)
ADVANTAGES: Designed for vital, mission-critical chemicals and corrosive production compounds. Proprietary, high-quality seal materials enable unparalleled chemical resistance, wide range of wetted component materials available.

Whether your solution requires a single pumping application or an expansive engineered system,
CheckPoint is committed to becoming your partner in excellence.
