Electric Pumps

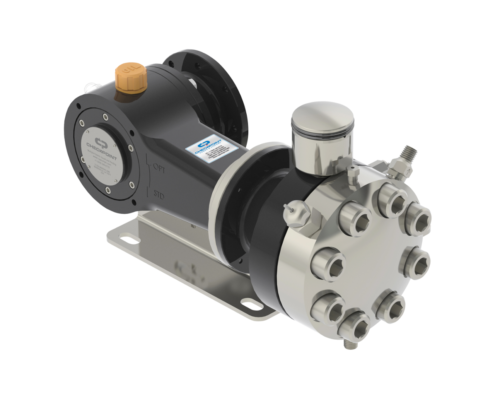

Series HDA

Electric Diaphragm

FLOW RATE: 0.11 - 2.88 USG/H (0.42 - 10.90 L/H)
PRESSURE: 0 - 1,000 PSIG (0 - 69 BARG)
ADVANTAGES: Features ceramic hydraulic plunger and bushing, guaranteeing long life, low wear, and repeatable, consistent injection. Includes rupture detection system, internal relief valve, and more.

electric chemical injection pump with digital speed adjustment

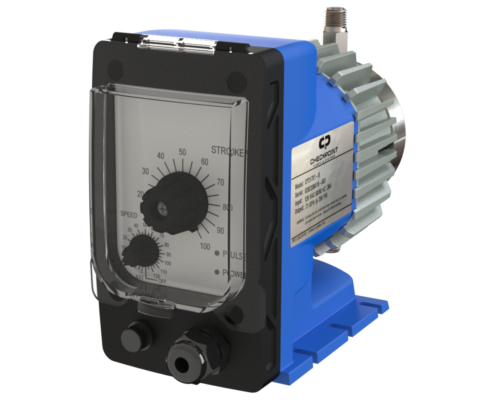

Series S

Electric Solenoid

FLOW RATE: 0.0 - 1.25 USG/H (0.0 - 4.73 L/H)
PRESSURE: 0 - 250 PSIG (0 - 17.24 BARG)
ADVANTAGES: Digital speed adjustment provides repeatable precisions, and metering accuracy is achieved via highly efficient check valves. NEMA 4X housing with splashguard allows for outdoor installations.

Series ATP

Electric/Solar Plunger

FLOW RATE: 0.0 - 60.0 USG/D (0.0 - 227.1 L/D)
PRESSURE: 0 - 5,000 PSIG (0 - 344.7 BARG)
ADVANTAGES: Economical electric pump solution capable of onshore and offshore duty with AC, DC, and solar service. Features expandability up to 4 independent injection heads.

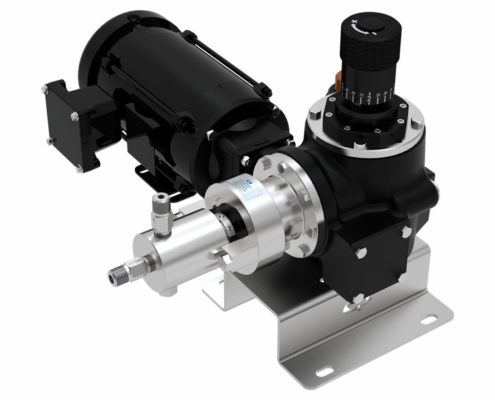

Series SLA

Electric Plunger

FLOW RATE: 0.0 - 50.87 USG/H (0.0 - 192.56 L/H)
PRESSURE: 0 - 13,500 PSIG (0 - 931 BARG)
ADVANTAGES: Robust casing and a variable eccentric drive designed to withstand harsh conditions. Contains minimal moving parts to guarantee long-term reliability and superior uptime.

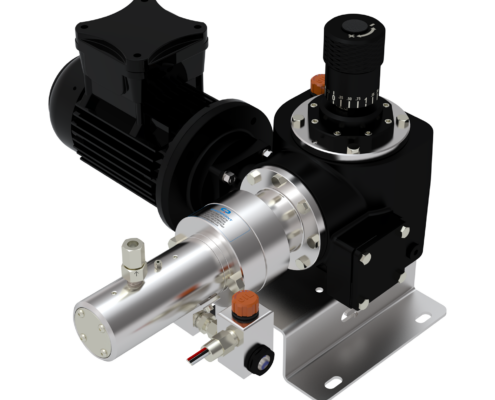

Series SLA LeakLess

Electric Plunger

FLOW RATE: 0.0 - 22.61 USG/H (0.0 - 85.59 L/H)
PRESSURE: 0 - 13,500 PSIG (0 - 931 BARG)
ADVANTAGES: Engineered to combine the advantages of both diaphragm and plunger pumps, featuring new patent pending technology which virtually eliminates seal wear and rapid bleeding design.

portable solar/electric chemical injection plunger pump

Series FXS

Electric/Solar Plunger

FLOW RATE: 0.34 - 552.3 USG/H (1.29 - 1920 L/H)
PRESSURE: 0 - 12,000 PSIG (0 - 827.37 BARG)
ADVANTAGES: Designed to provide a quality, low-maintenance, environmentally friendly chemical injection solution. Quick installation and maintenance, prewired with MC4 quick connectors.

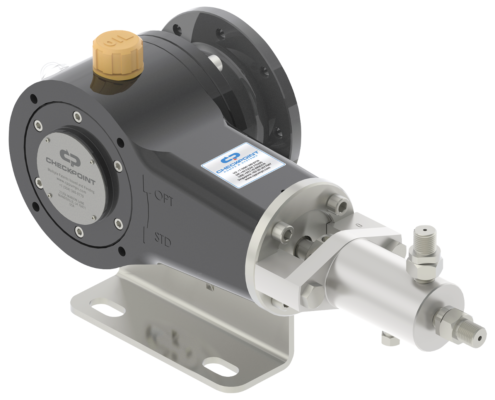

Series FXA

Electric Plunger

FLOW RATE: 0.01 - 35.92 USG/H (0.037 - 136 L/H)
PRESSURE: 0 - 15,000 PSIG (0 - 1034 BARG)
ADVANTAGES: Modular, scalable electric pump with a highly efficient drive mechanism. Accommodates a variety of motors and a full range of plunger diameters from 1/8" to 1-1/2". Quick maintenance and low downtime.

electric pump with hydraulically actuated balanced diaphragms

Series MD

Electric Diaphragm

FLOW RATE: 3 - 2,190 USG/H (11.36 - 8,290.1 L/H)
PRESSURE: 0 - 2,500 PSIG (0 - 172.4 BARG)
ADVANTAGES: Featuring hydraulically actuated balanced diaphragms, each containing an internal suction and discharge check. Each diaphragm is sequentially actuated by a cam shaft or wobble plate design.

electric metering pump with single nonmetallic diaphragm

Series MDZ

Electric Diaphragm

FLOW RATE: 0.05 - 60 USG/H (0.19 - 227.3 L/H)
PRESSURE: 0 - 1,500 PSIG (0 - 103 BARG)
ADVANTAGES: Boasts a unique drive system which efficiently converts the rotational energy of the motor to axial energy and pressurizes hydraulic oil, actuating a single nonmetallic diaphragm. Enables incredibly low failure rates.

ELECTRIC CHEMICAL INJECTION PUMPS

CheckPoint is a leading provider of electric chemical injection pumps

Series HDA

Series S

Series ATP

Series SLA

Series SLA LeakLess

Series FXS

Series FXA

Series MD

Series MDZ
