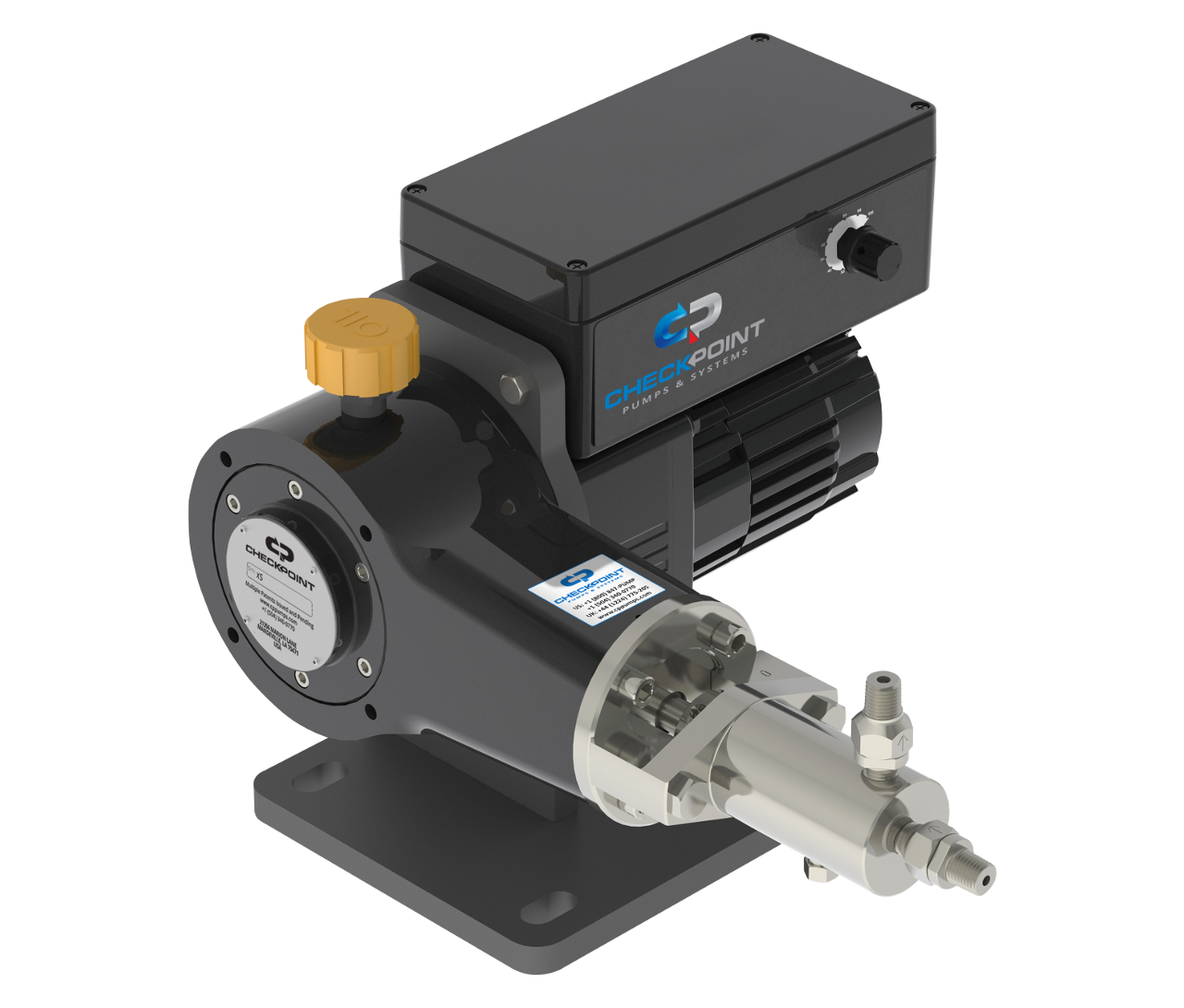

Series FXS
Electric/Solar Plunger Pump
CheckPoint’s Series FXS electric/solar plunger pump delivers between 0.34 – 552.3 USG/H (1.29 – 1920 L/H) and can reliably inject into pressures up to 12,000 PSIG (827.37 BARG) per head.
The FXS was designed to provide a quality, low-maintenance, and environmentally friendly chemical injection solution. Its lightweight, portable, and sturdy design lends itself to easy mobility in the field. Each system is prewired with industry-standard MC4 quick connectors for both the panel and the pump, ensuring minimal installation and setup time. The entire system was designed to be effortlessly assembled by one person in as little as fifteen minutes. The front access enclosure containing its battery and charge controller is raised to an easy-access level that provides clearance for rain or snow. The integrated base allows the pump to dependably stand alone or to be easily bolted to a structure.

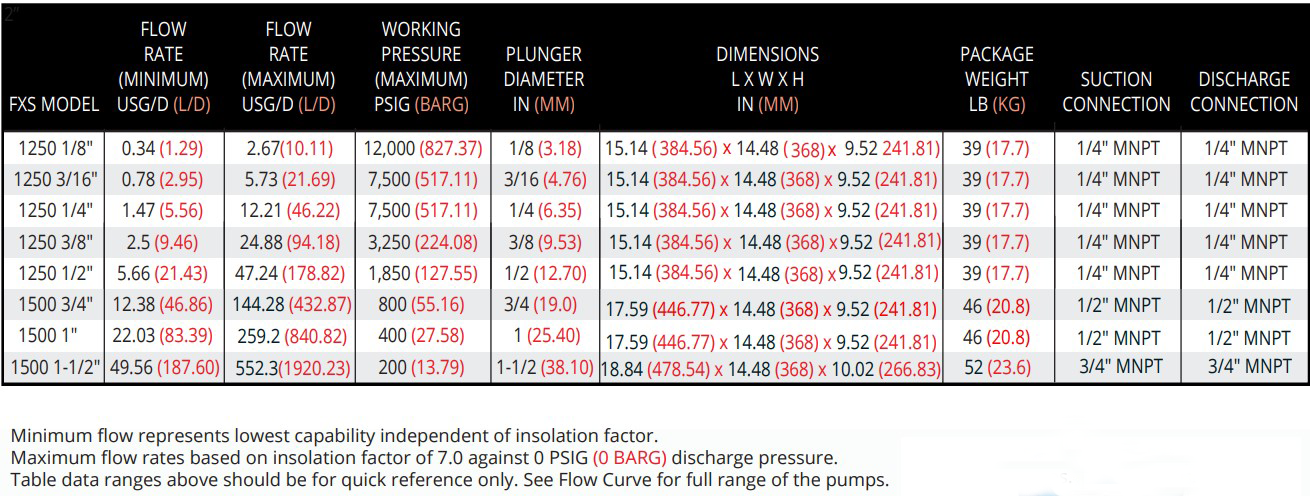

Performance Data
Parts List Drawing
Quick Setup Guide
Operating Manual
Operation Guide
Solar Instructions
Order Guide
Sales Brochure
Rentals
CheckPoint’s Series FXS is optimized for continuous, reliable chemical injection, with precision flow rate control and no timers. Its Class 1, Division 2 pump motor ensures a heightened level of quality and safety. This highly efficient pump designed and manufactured in-house by CheckPoint, ensuring battery longevity. In addition to diminishing the waste associated with battery failure, eliminating gas emissions further protects the environment. From its ease of installation and maintenance, to its wide range of flow rates and pressures, to its safety and environmental benefits, every aspect of this system’s design will optimize your chemical injection processes.
Performance Data
